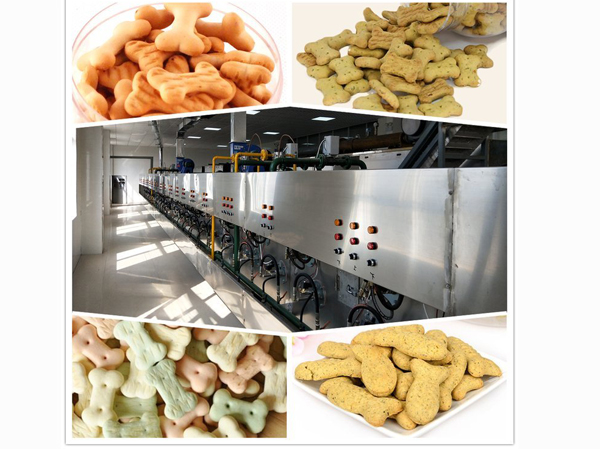

Automatic Pet Biscuit Production Line

Multi-functional full-automatic cookie production line is developed by our company after many years of development, with novel design, compact structure and high degree of automation, from feeding to calendering, molding, waste recycling, drying, oil spraying, cooling and full automaticity.

This production line can be combined according to the user's site requirements, as well as the requirements of the cookie process, can achieve the ideal. The cookie production line adopts electrical components, frequency conversion speed control, energy saving, single control, joint control are available.

The company provides customers with hundreds of molds and dozens of process formulas, by changing the molds and process formulas can produce a variety of cookies on the market!

Manufacturing cookie production line, there are small bracket type biscuit molding machine, there are large wall plate type biscuit molding machine, according to the user's output size to order equipment, our company specializes in the production of products to the user to configure the equipment!

Application: potato chips, crispy, tough, sandwich biscuits and so on.

Model:280/400/600/800/1000/1200

Capacity:100/250/500/750/1000/1250kg/hour

Certification:ISO,CE,BV,SGS

Forming Machine Classification:Bracket type biscuit molding machine, wall plate type biscuit molding machine

Heating mode: natural gas heating mode , diesel heating mode, electric heating mode.

Main machines of automatic pet biscuit production line

1、Mixing machine: Stir the flour with water or other ingredients to form a dough machine Suitable for making all kinds of pastries, biscuits, bread, steamed bread and other dough.

2、Toughness forming machine: put the stirred dough into this machine, press the skin by three rolls, and then cut into biscuit embryo by one roll of the roll cutting mold, into the oven, bake all kinds of toughness biscuits.

3、Crisp molding machine: put the mixed flour into this machine, through the roll printing molding can become the biscuit embryo, into the oven to make all kinds of biscuits and so on.

4、Sugar and Sesame Spreader: This machine spreads powdered sugar, salt or sesame, fruit and other materials on the surface of biscuits to increase the flavor of biscuits and improve the quality of products. The excess material can be recycled.

5、Oven machine: It is to connect the roll cut and shaped biscuits into the transmission device of the oven, and the large roller will continuously send the biscuits connected to the wire mesh belt into the oven for baking.

6、Tunnel oven: using electric power heating, gas heating mode, temperature zone control, the temperature of each temperature zone can be set, temperature uniformity within the temperature zone, the use of insulation materials, insulation performance is good, thermal efficiency is good, the inner plate of the furnace spray silver powder with silicon paint (400 degrees high temperature). Full-automatic temperature control system, automatic temperature control and constant temperature, flexible operation, high safety performance, suitable for baking all kinds of biscuits; output of different configurations of different lengths and widths;

7, out of the machine: is the oven baked biscuits brought out of the oven into the oil spraying machine, at the same time can drive the oven mesh belt, tighten the mesh belt.

8, oil spraying machine; when the skin forming and baking, in the biscuits on the outside of the spray on a variety of delicious and fragrant food oil, refined oil, sugar water, doubling the surface brightness, improve the degree of beauty, improve the taste of biscuits, doubling the variety of flowers and colors!

9、Turning machine: This equipment turns on the way of biscuit cooling, shortens the length of the whole line, increases the effect of biscuit cooling and transportation, turning angle of 90 degrees 180 degrees, etc.

10、Cooling conveyor: This equipment can fully cool down the biscuits before transferring them to the packing machine, so that the quality of the biscuits after packing and the shelf life can be prolonged.

11、Differential speed biscuits handling machine: this equipment can make stacks of biscuits before they are cooled and packaged, which saves packaging labor and improves working efficiency.

12、Packing platform: put the biscuits organized into rows into the track of the packing machine before packing, which can speed up the packing speed.

13、Centering machine: used for biscuit centering. The type of sandwich machine is 2 biscuits with one layer of sandwich or 3 biscuits with two layers of sandwich.

14、Packaging machine: This machine is suitable for packing biscuits, chocolate, wafers, moon cakes, custard pies and other solid and regular objects. It is characterized by novel structure, beautiful style, low noise, smooth running, low failure rate and convenient maintenance.
