Automatic bubble gum production line can produce ball square shaped bubble gum. Bubble gum making machine by cooling conveyor cabinet bubble gum forming machine unit

1.Automatic Bubble Gum Production Line

  Automatic Bubble Gum Production Line

  Special Shape bubble gum production line

  Round bubble gum production line

  Ball Bubble Gum Production Line

  Center Filled Bubble Gum Production Line

2.Bubble Gum types (candy shapes) and applications

3.Bubble Gum making Machine Working Principle

4.Installation of the Bubble Gum making machines

5.Bubble Gum production line for sales and price

1.Automatic Bubble Gum Production Line

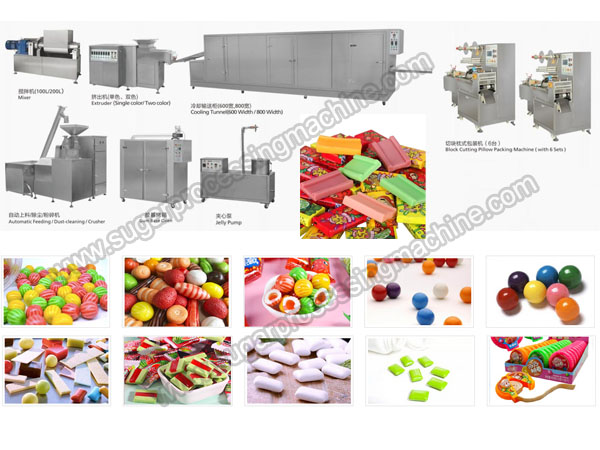

Automatic Bubble Gum Production Line

Main Performance

Automatic Bubble Gum Production Line is an automatic production line integrates forming, cutting and packing for cream candy, bubble gum and toffee that. It takes the advantages of high production efficiency and low defect rate. It can produce all kinds of shapes and specifications products as customers* requirement. For example, chewing gum and Sugus shapes of tablet, rectangle and circular with center Ailed, colors filled and so on.

Process flow chart of Automatic Bubble Gum Production Line

Automatic feeding/dust cleaning/crushing machine-mixer-extruder-cooling tunnel-block cutting pillow packing machine-low temperature double vacuum cooker-gum base oven

Main Technical Parameters For Production Line

Capacity:750-850(kg/h)

Power Supply:380V

Gross Power:143 kw

Dimension:17300X5500X1800 mm

Adjustable Range for Candy:18-80 mm

Gross Weight:15000 kg

Technical Parameters For Each Machine

Automatic feeding/Dust Cleaning/Crushing Machine:Main power:17 kw,Dimensions:3500x1300x2200 mm,Weight:400 kg.

Mixer-100L:Main power:20 kw,Dimensions:2300x860x1550 mm,Weight:1500 kg

Mixer-200L:Main power:24 kw,Dimensions:2650x1000x1650 mm ,Weight:2000 kg

Extruder-One Color: Main power:15kw ,Dimensions:2500x900x1500 mm ,Weight:1000 kg

Extruder-Two Color:Main power: 22 kw  ,Dimensions:2600x1150x1500 mm ,Weight: 2200 kg

Jelly Pump:Main power:3 kw,Dimensions:1600x550x1650 mm,Weight:300 kg

Cooling Tunnel-600:Main power:20 kw,Dimensions:8850x1900x1850 mm,Weight: 2500 kg

Cooling Tunnel-800Main power::22 kw,Dimensions:8850x2100x1850 mm ,Weight:2700 kg

Block Cutting Pillow Packing Machine (Sets):Main power:4 kw,Dimensions:2150x900x1500 mm,Weight:980 kg

Low Temperature Double Vacuum Cooker:Main power: 29 kw,Dimensions: 3300x1600x3200 mm ,Weight: 2500 kg

Gum Base oven:Main power:18kw,Dimensions:1600x600x1700mm ,Weight: 300kg

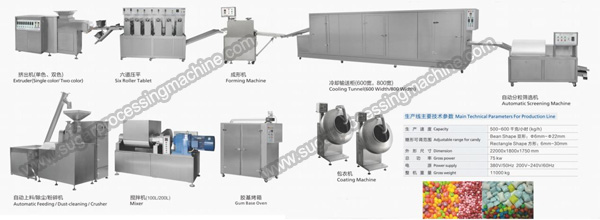

Special Shape bubble gum production line

Special Shape bubble gum production line

   This production line is suitable for producing Special Shape bubble gum candy. This fully-automatic production line consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine. It can produce different shapes of candy, such as square, rectangular, tablet etc. This machine features in reliable performance, simple and flexible operation, high automation. It is one of the good choices for producing Special Shape bubble gum candy.

Process flow chart of Shaped bubble gum Production Line

mixer-extruder-six roller tablet-forming machine-cooling tunnel-automatic screening machine-gum base oven-coating machine

Main Technical Parameters For Production Line

Capacity:500-600(kg/h)

Adjustable range for candy:Bean Shape：6mm-22mm;Rectangle Shape：6mm-30mm

Dimension:22000x1800x1750 mm

Gross power:75 kw

Power supply:380V/50HZ 200V-240V/60HZ

Gross weight:11000 kg

Technical Parameters For Each Machine

Automatic feeding/Dust Cleaning/ Crushing Machine:Power:17kw,Dimension:3500x1300x2200mm,Weight:400kg

Gum Base oven:Power:18kw,Dimension:1600x600x1700mm,Weight:300kg

Mixer-100L:Power: 20 kw,Dimension:2300x860x1550mm,Weight:1500kg

Mixer-200L:Power: 24 kw,Dimension:2650x1000x1650mm,Weight:2000kg

Extruder-One Color:Power: 15kw,Dimension:2500x900x1500mm,Weight:1000kg

Extruder-Two Color:Power:22 kw,Dimension:2600x1150x1500mm,Weight:2200kg

Six Roller Tablet:Power:5 kw,Dimension:5100x950x1880mm,Weight:2000kg

Forming Machine:Power:2.2 kw,Dimension:1800x780x1650mm,Weight:800kg

Cooling Tunnel-600 Width:Power:20 kw,Dimension:8850x1900x1850mm,Weight:2500kg

Cooling Tunnel-800 Width:Power:22 kw,Dimension:8850x2100x1850mm,Weight:2700kg

Automatic Screening Machine:Power:3 kw,Dimension:2200x1000x1400mm,Weight:350kg

Coating Machine:Power:2 kw,Dimension:1050x1050x1600 mm,Weight:350 kg

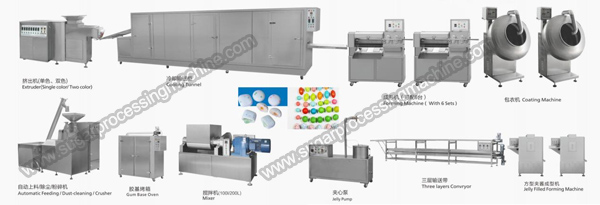

Round bubble gum production line

Round bubble gum production line

    It is suitable for producing round bubble gum with all kinds of shaped. This production line is composed by mixer, extruder, cooling tunnel/3 layers conveyor, forming machine (6 sets), coating machine, jelly filled forming machine and gum base oven. It can be produced hollow, powder filling or jelly filling candy in the shapes of balls, strawberry, oval, column, and so on.

Process flow chart of Round Bubble Gum Production Line

    mixer-extruder-cooling tunnel/3 layers conveyor-forming machine-coating machine-jelly filled forming machine-gum base oven

Technical Parameters For Production Line

Capacity:400-650千克 / 小时(kg/h)

Diameter of candy:10-25mm

Dimension:15000x4000x1500mm

Gross power:82kw

Power supply:380V

Gross weight:8850kg

Technical Parameters For Each Machine

Automatic feeding/Dust Cleaning/ Crushing Machine:Power:17kw,Dimension:3500x1300x2200mm,Weight:400kg

Gum Base oven:Power:18kw,Dimension:1600x600x1700mm,Weight:300kg

Mixer-100L:Power:20kw,Dimension:2300x860x1550mm,Weight:1500kg

Mixer-200L:Power:24kw,Dimension:2650x1000x1650mm,Weight:2000kg

Extruder-One Color:Power:15kw,Dimension:2500x900x1500mm,Weight:1000kg

Extruder-Two Color:Power:22kw,Dimension:2600x1150x1500mm,Weight:2200kg

Jelly Pump:Power:3kw,Dimension:1600x550x1650mm,Weight:300kg

Cooling Tunnel-600:Power:20kw,Dimension:8850x1900x1850mm,Weight:2500kg

Cooling Tunnel-800:Power:22kw,Dimension:8850x2100x1850mm,Weight:2700kg

Three layers Convryor:Power:2.3kw,Dimension:10500x900x1450mm,Weight:300kg

Forming Machine:Power:1.5kw,Dimension:1320x950x1600mm,Weight:400kg

Jelly Filled Forming Machine:Power:2.2kw,Dimension:1200x1200x1300mm,Weight:650kg

Coating machine:Power:2kw,Dimension:1050x1050x1600mm,Weight:350kg

Ball Bubble Gum Production Line

Ball Bubble Gum Production Line

Parameters

Capacity:150-300kg/h

100L Mixer:power:7.5kW,Dimensions:1900x660x1200mm,weight:1200kg

200L Mixer:power:18.5kW,Dimensions:2250x950x1550mm,weight:2000kg

Pressing machine:power:5.5kW,Dimensions:6200x1000x1500mm.weight:3000kg

   The ball gum production line main consists of mixer, extruder, forming machine, cooling machine and coating pan. It can produce many kinds of shape such as sphere, ellipse, watermelon, egg and so on

Center Filled Bubble Gum Production Line

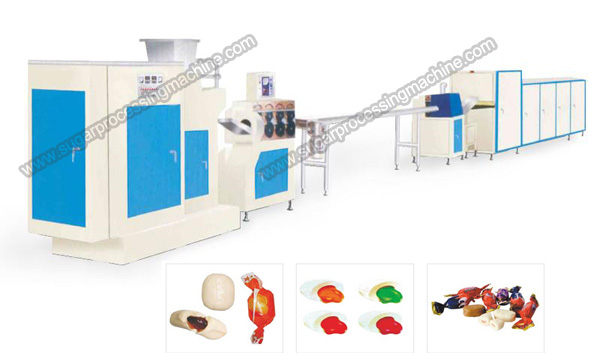

Center Filled Bubble Gum Production Line

Parameters

Capacity：250 ~ 300kg/h

Total power:24kW

Shell dimension:11.2mx 1.5m x 2m

Total weight:7800kg

  This line is designed for producing central filled bubble gum or center filled soft chewy candy as per the design of the candy shape. This line has an excellent reliable performance and changeable candy style, such as soft Bubble Gum and toffee candy, chewy candy etc.

characteristic

   Vacuum boiling sugar and inflatable stirring automatic control alternately;

   Unique design of inflatable stirring device to ensure the quality of products;

   Production capacity up to 300kg per hour;

   Synchronous automatic control of sandwich/extrusion/strip;

   Chain forming can complete the production of different shapes of milk candy online;

   Can produce ordinary Bubble Gum, sandwich milk candy, toffee, etc.;

Process flow chart of Automatic Bubble Gum Production Line

Automatic feeding/dust cleaning/crushing machine-mixer-extruder-cooling tunnel-block cutting pillow packing machine-low temperature double vacuum cooker-gum base oven

Main component equipment

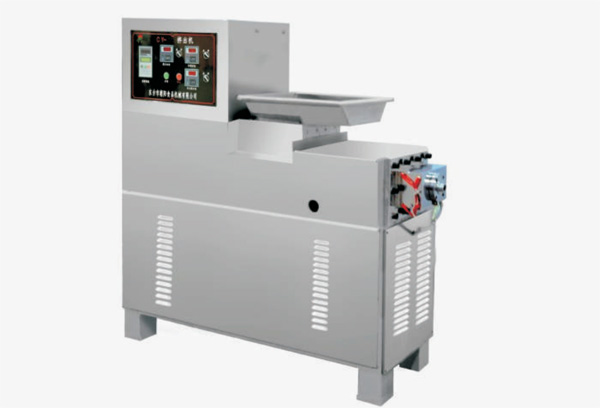

Extruder(single color)

The extruder is used to extrude Bubble gum. It is equipped with a stainless-steel hopper with an extrusion head made of a high hardness steel coated in polytetrafluoroethylene. The extrusion head maintains its temperature via hot water to ensure the gum base remains warm and soft to avoid cracking or breaking.

Power:15kw

Dimensions:2500*900*1500mm

Machine weight:1000kg

Extruder(two color)

Power:22kw

Dimensions:2600*1150*1500mm

Machine weight:2200kg

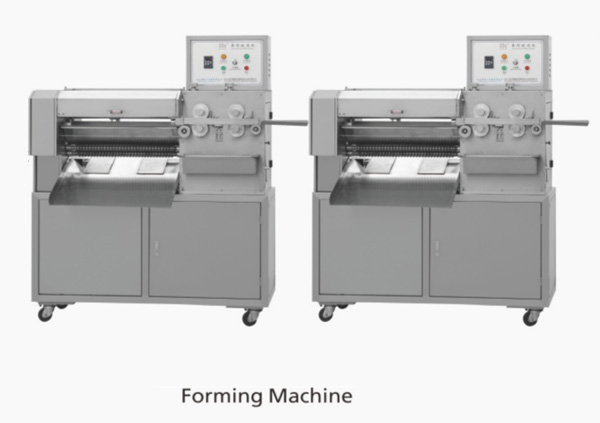

Forming machine

Power:1.5kw

Dimensions:1320*950*1600mm

Machine weight:400kg

The forming machine produces Bubble gum in a variety of sizes according to customer requirements.

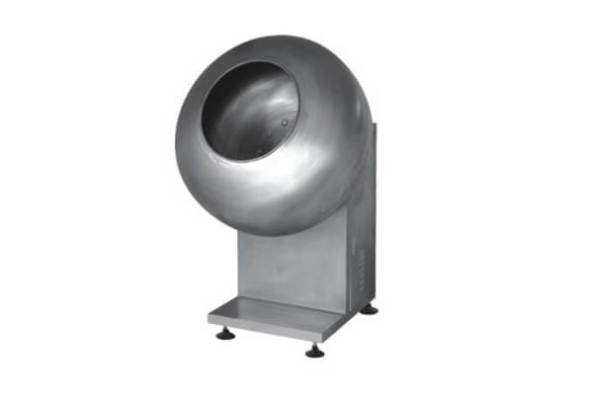

Coating machine

Power:2.2kw

Dimensions:1600*730*1450mm

Machine weight:350kg

This machine is used for polishing the candy surfac

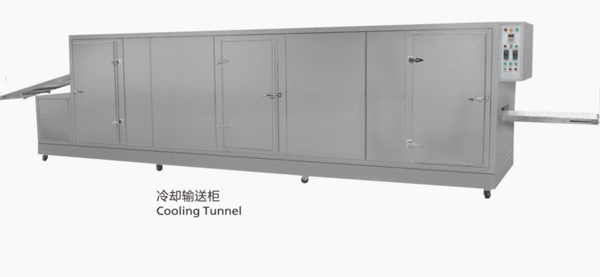

Cooling Tunnel

1.1Cooling Tunnel(600)

Power:20kw

Dimensions:8850*1900*1850mm

Machine weight:2500kg

1.2Cooling Tunnel(800)

Power:22kw

Dimensions:8850*2100*1850mm

Machine weight:2700kg

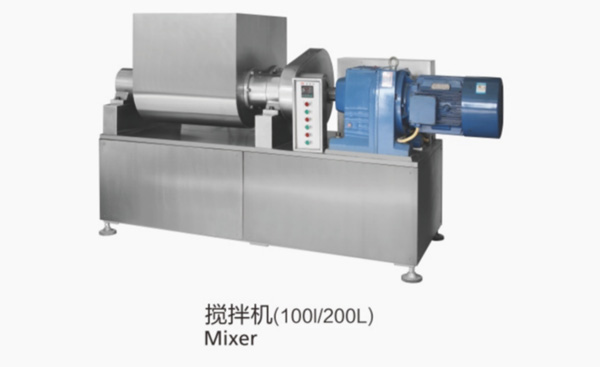

Mixer

This machine is designed to mix Bubble gum raw materials and features a high efficiency.

1.1 Mixer(100)

Power:20kw

Dimensions:2300*860*1550mm

Machine weight:1500kg

1.2 Mixer(200)

Power:24kw

Dimensions:2650*1000*1650mm

Machine weight:2000kg

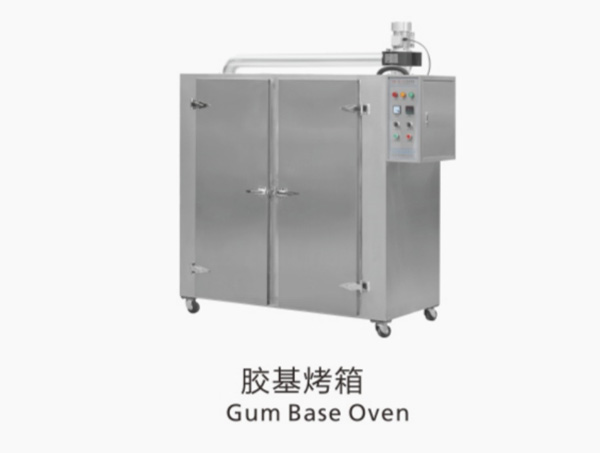

Gum base oven

Power:18kw

Dimensions:1600*600*1700mm

Machine weight:300kg

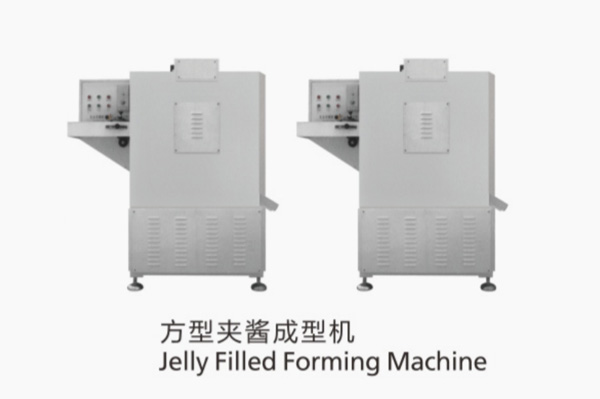

Jelly Filled Forming Machine

Power:2.2kw

Dimensions:1200*1200*1300mm

Machine weight:650kg

2.Bubble Gum types (candy shapes) and applications

Can make different shapes of bubble gum: ball bubble gum, square bubble gum, shaped bubble gum, sandwich bubble gum and so on

3.Bubble Gum making Machine Working Principle

     Bubble gum production line by blender, extruder, molding machine, cooling machine and icing machine. It is the ideal equipment for producing bubble gum of various shapes, such as ball type, watermelon type, oval shape, dinosaur egg shape, wine pot type. The output of the equipment is beautiful in shape, stable in machine performance, simple in operation and maintenance.

     The line can also produce various shapes of milk candy, single or two color bubble gum. The production line has high efficiency, good sanitary conditions and stable operation performance, is the ideal equipment for the production of high-end candy.

     Main features:

     using PLC control technology, high degree of automation;

     the use of two extrusion, make the bubble gum tissue fine, taste better;

     the use of vacuum negative pressure suction powder, production environment;

     the horizontal roller anti-dandruff machine bubble gum smooth without burr.

4.Installation of the Bubble Gum making machines

  We will send engineers to help you install the machine

5. Bubble Gum production line for sales and price

   You can contact us, we will provide you with the plan and quotation of your bubble gum processing machine according to your situation
